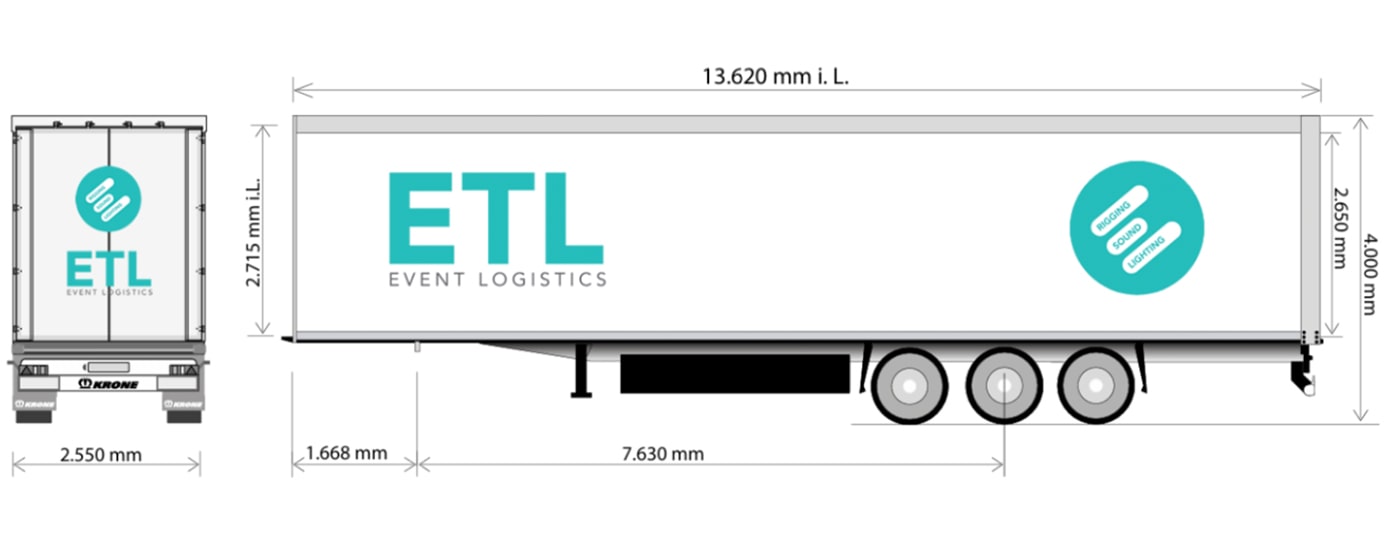

45 FT BOX TRAILER
Our 45ft box trailers offer the best all round solution when it comes to security, capacity and turnaround speed. The fully weather-proofed and lockable steel shell offers superior protection when carrying sensitive and valuable equipment.
KEY FEATURES
- Stow-able ramp with 750kg capacity
- Internal LED lighting
- Built in load securing rails
- Load security bars and ratchet straps
- Rear barn doors
- High security welded steel locking bar
- Low-ride air suspension suitable for Europe
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,715 mm |
| INTERNAL WIDTH | 2,480 mm |
| INTERNAL LENGTH | 13,260 mm |
| REAR PORTAL LOADING HEIGHT | 2,650 mm |
| REAR PORTAL LOADING WIDTH | 2,480 mm |
| REAR DROP HEIGHT FROM FLOOR TO ROAD | 1150 mm (can be lowered to 750mm) |
External Dimensions
| EXTERNAL HEIGHT | 4,000 mm |
| EXTERNAL WIDTH | 2,550 mm |
| EXTERNAL LENGTH | 13,620 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 23,000 kg |
| RAMP WEIGHT CAPACITY | 750 kg |
| CERTIFICATIONS & STANDARDS | Certified by TUV Nord to EN 12642 Code XL load restraint standards. Flooring: 30 mm thick, phenolic coated plywood floor, cut surfaces fully waterproofed and sealed. Internal forklift capacity: 7,000kg. |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.
45 FT CURTAIN SIDE TRAILER
Our 45ft curtainsider trailers offer versatility when it comes to bulky loads or palletised equipment where side loading and unloading capability is a must. During loading the roof can be raised to utilise the full height capacity of the trailer or slid back to allow loads to be hoisted in and out.
KEY FEATURES
- Fully retractable PVC curtain on both sides to allow full side loading.
- Lifting roof allows the roof clearance to be raised by 500mm during loading.
- Sliding roof allows loads to be hoisted on similar to a flat bed trailer.
- Ratchet straps rated to 5,000kg each provided.
- Multiple load security and lashing points throughout.
- Fully TIR/ ATA compliant and fitted with a sealing chord.
- Low-ride air suspension suitable for Europe
- Optional wooden slats available for certain applications where strapping is difficult.
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,715 mm (can be raised to 3,215 mm) |
| INTERNAL WIDTH | 2,480 mm |
| INTERNAL LENGTH | 13,260 mm |
| REAR PORTAL LOADING HEIGHT | 2,650 mm |
| REAR PORTAL LOADING WIDTH | 2,480 mm |
| REAR DROP HEIGHT FROM FLOOR TO ROAD | 1150 mm (can be lowered to 750mm) |
External Dimensions
| EXTERNAL HEIGHT | 4,000 mm |
| EXTERNAL WIDTH | 2,550 mm |
| EXTERNAL LENGTH | 13,620 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 24,800 kg |
| SIDE SLATS | Wooden side slats are available on request |
| CERTIFICATIONS & STANDARDS | Certified by TUV Nord to EN 12642 Code XL load restraint standards. Flooring: 30 mm thick, phenolic coated plywood floor, cut surfaces fully waterproofed and sealed. Internal forklift capacity: 7,000kg. |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.

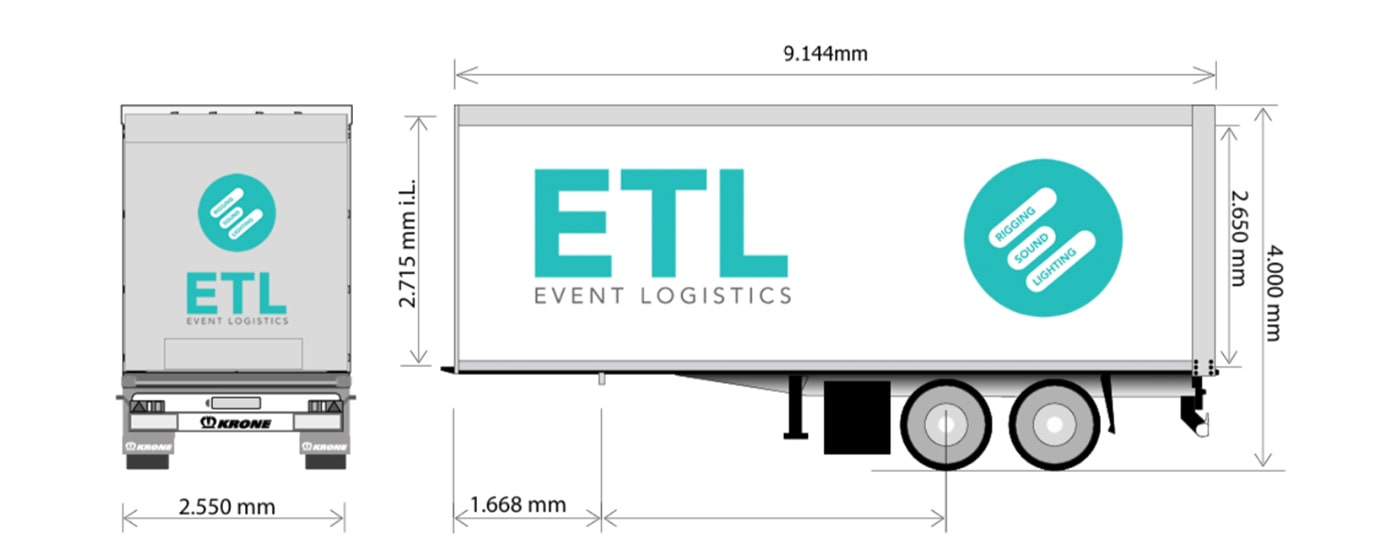

30 FT BOX TRAILER
Our unique 30ft urban box trailers are exclusive to ETL and offer unmatched manoeuvrability without compromising on weight capacity. The twin-axle arrangement makes it ideal for city centre locations and the 2,000kg full height tail lift is perfect for applications where self-discharging is a must.
KEY FEATURES
- 2,000kg full height tail lift with safety bars
- Superior manoeuvrability and ideal for city centre locations
- Internal load securing rails
- Supplied with ratchet straps and load bars
- Higher payload capacity than rigid trucks
- Internal LED lighting
- Low-ride air suspension suitable for Europe
- Single axle rear-steer alternative available for restricted access locations
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,715 mm |
| INTERNAL WIDTH | 2,480 mm |
| INTERNAL LENGTH | 8,750 mm |
| REAR PORTAL LOADING HEIGHT | 2,650 mm |
| REAR PORTAL LOADING WIDTH | 2,300 mm |
External Dimensions
| EXTERNAL HEIGHT | 4,000 mm |
| EXTERNAL WIDTH | 2,550 mm |
| EXTERNAL LENGTH | 9,144 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 15,000 kg |
| TAIL LIFT CAPACITY | 2,000 kg |
| CERTIFICATIONS & STANDARDS | Certified by BSI to EN 12642 Code XL load restraint standards. |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.
RIGID BOX TRUCK
Our diverse range of rigid box trucks are designed specifically for use in the events industry and offer a fully weatherproofed, secure solution for moving valuable and sensitive equipment either in the city or further afield.
For short distance work we have a dedicated fleet of experienced day trip drivers and trucks based in West London. These drivers are highly experienced when it comes to multi-drop and Central London deliveries. For long distance work we also have a pool of European capable drivers with sleeper cab rigid trucks which can carry out deliveries anywhere within Europe.
KEY FEATURES
- Approximately 7,500kg payload weight capacity
- Single drop event work, music touring or multi-drop work
- Driver operated full height tail lift rated to 1,000kg
- Sleeper cab or day cab options
- Supplied with ratchet straps and load bars
- Vehicles fitted with DVS Direct Vision Standard Equipment for London
- Full air suspension with levelling capability
- Side-Loading door option and extended body option available
We operate a range of 18,000kg rigid vehicles in our fleet and these dimensions are purely intended as a guide. If you have any specific requirements regarding dimensions, please feel free to contact our team who will be able to match a specific vehicle to your requirements.
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,560 mm |
| INTERNAL WIDTH | 2,480 mm |
| INTERNAL LENGTH | 7,700 mm |
| REAR PORTAL LOADING HEIGHT | 2,400 mm |
| REAR PORTAL LOADING WIDTH | 2,300 mm |
External Dimensions
| EXTERNAL HEIGHT | 3,657 mm |
| EXTERNAL WIDTH | 2,550 mm |
| EXTERNAL LENGTH | 9,000 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 7,500 kg |
| TAIL LIFT CAPACITY | 1,000 kg |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.

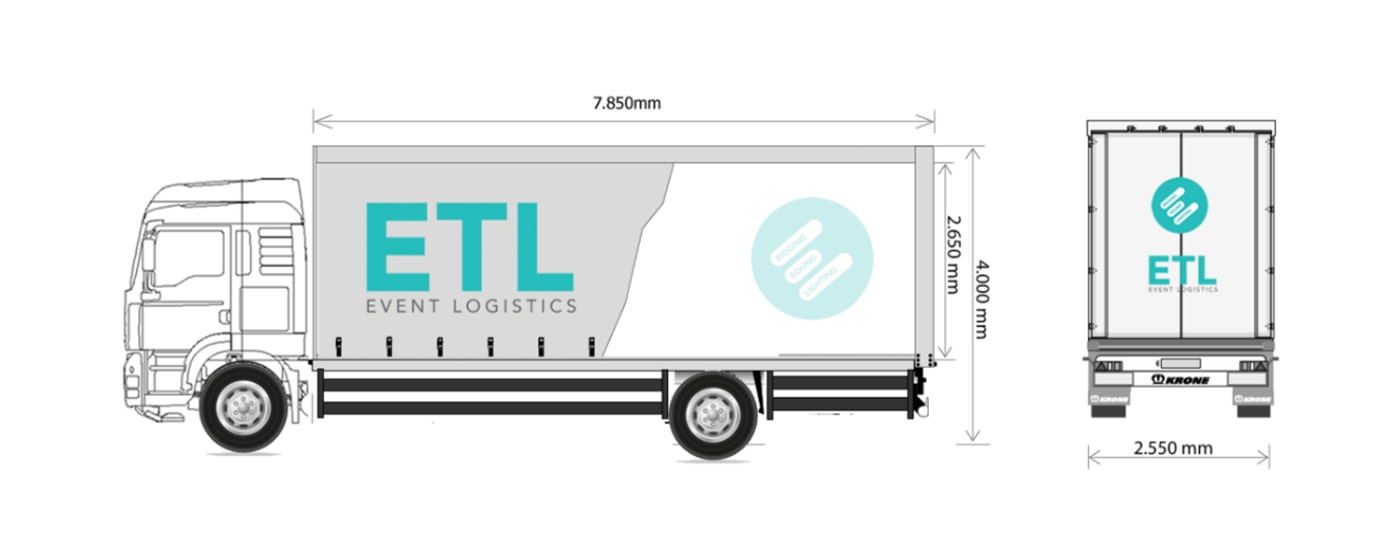

CURTAIN SIDE RIGID TRUCK
Our curtain side rigid trucks are a must for small events where side loading capability is required. Barn doors and a fold away tail lift give additional flexibility when it comes to loading and unloading
For short distance work we have a dedicated fleet of experienced day trip drivers and trucks based in West London. These drivers are highly experienced when it comes to multi-drop and Central London deliveries. For long distance work we also have a pool of European capable drivers with sleeper cab rigid trucks which can carry out deliveries anywhere within Europe.
KEY FEATURES
- Stowed tail lift (1,000kg capacity)
- Supplied with ratchet straps
- Various load securing and lashing points throughout
- Internal LED lighting
- TIR chord to ensure ATA compliance
- Air suspension and suitable for Europe
We operate a range of 18,000kg rigid vehicles in our fleet and these dimensions are purely intended as a guide. If you have any specific requirements regarding dimensions, please feel free to contact our team who will be able to match a specific vehicle to your requirements.
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,560 mm |
| INTERNAL WIDTH | 2,480 mm |
| INTERNAL LENGTH | 7,700 mm |
| REAR PORTAL LOADING HEIGHT | 2,400 mm |
| REAR PORTAL LOADING WIDTH | 2,300 mm |
External Dimensions
| EXTERNAL HEIGHT | 3,657 mm |
| EXTERNAL WIDTH | 2,550 mm |
| EXTERNAL LENGTH | 9,000 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 7,500 kg |
| TAIL LIFT CAPACITY | 1,000 kg |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.
COMPACT RIGID TRUCK
Our compact rigid box trucks offer double the weight capacity of a conventional van whilst still offering the same level of manoeuvrability for venues with restricted access. The rear fold-away tail lift offers and impressive 750kg weight capacity making it ideal for small pallets.
If you just need something slightly bigger than a van our compact rigid box trucks may be perfectly suited for your event. Ideal for multi-dropping around town, these trucks can cover most inner-city locations thanks to their 7,500kg gross limit which enables them to travel through zones where larger trucks are not permitted.
KEY FEATURES
- Stowed tail lift (1,000kg capacity)
- Supplied with ratchet straps
- Internal LED lighting
- Higher capacity than a conventional van
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,100 mm |
| INTERNAL WIDTH | 2,480 mm |
| INTERNAL LENGTH | 5,250 mm |
| REAR PORTAL LOADING HEIGHT | 2,030 mm |
| REAR PORTAL LOADING WIDTH | 2,300 mm |
External Dimensions
| EXTERNAL HEIGHT | 3,353 mm |
| EXTERNAL WIDTH | 2,550 mm |
| EXTERNAL LENGTH | 7,000 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 2,000 kg |
| TAIL LIFT CAPACITY | 750 kg |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.

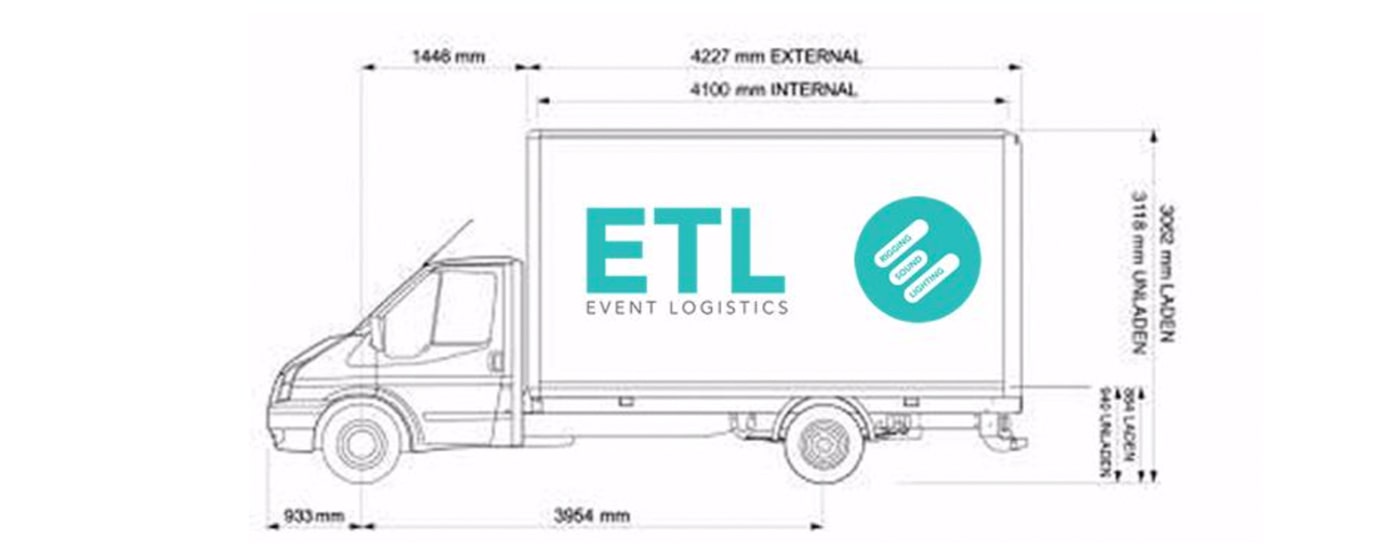

LUTON VAN
Our Luton box vans are ideal for small events in and around town. With internal load restraints and a 500kg tail lift they offer an excellent advantage over normal vans.
KEY FEATURES
- 500kg tail lift
- Supplied with ratchet straps and loading bars
- Internal LED lighting
- 850kg weight capacity
TECHNICAL DATA
Internal Dimensions
| INTERNAL HEIGHT | 2,175 mm |
| INTERNAL WIDTH | 2,040 mm |
| INTERNAL LENGTH | 4,100 mm |
| REAR PORTAL LOADING HEIGHT | 2,000 mm |
| REAR PORTAL LOADING WIDTH | 2,000 mm |
External Dimensions
| EXTERNAL HEIGHT | 3,052 mm |
| EXTERNAL WIDTH | 2,100 mm |
| EXTERNAL LENGTH | 5,673 mm |
Weight Capacity
| MAXIMUM PAYLOAD CAPACITY | 850 kg |
| TAIL LIFT CAPACITY | 500 kg |
Technical data, dimensions, weight capacities and certifications are to be used as a guide only and may vary based on manufacturer, availability or legal permissions. Please contact us if you require precise technical data.
